7325

N/A

Description

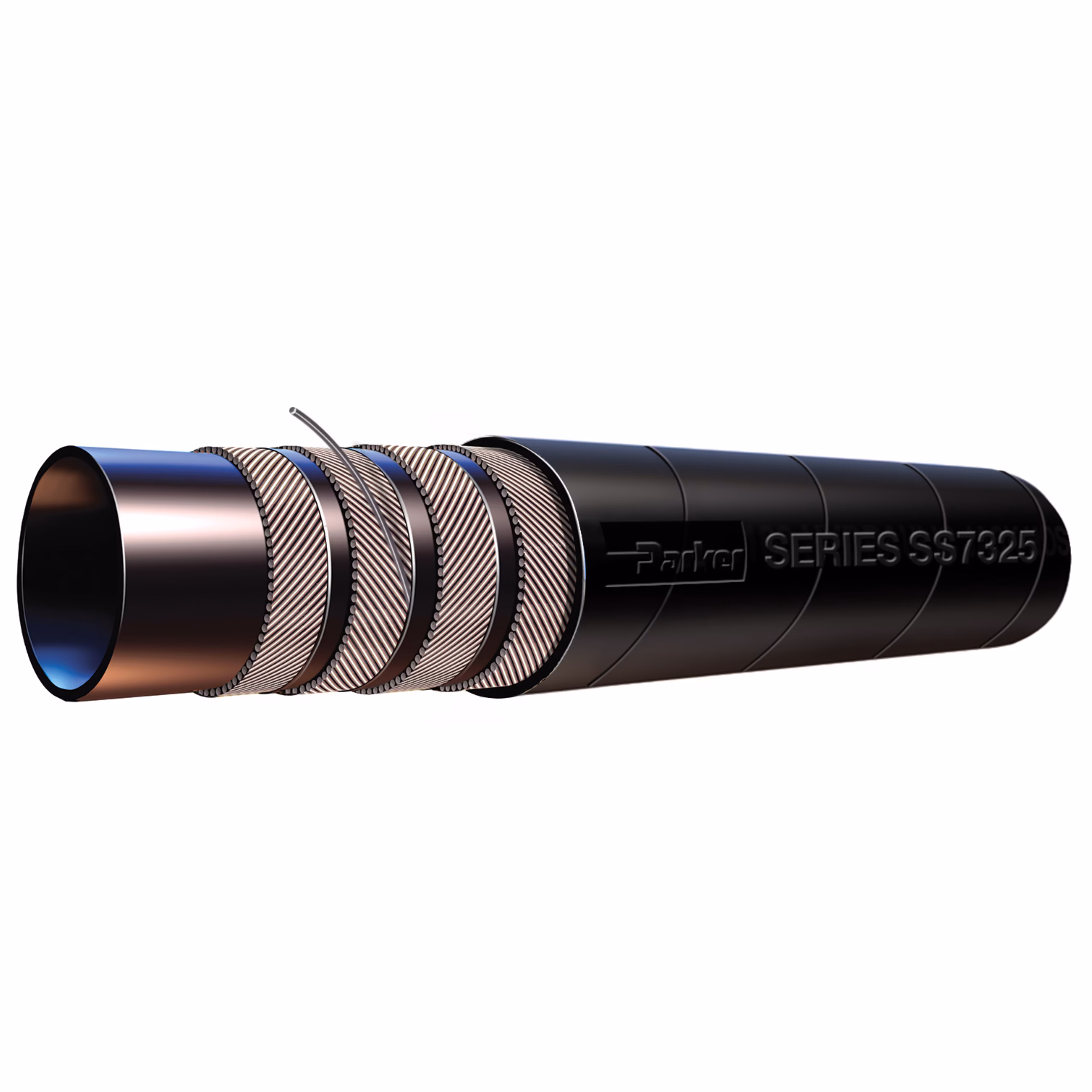

Super-Flex Heavy Duty Water Suction Hose is designed for water transfer in applications to 212°F and 300 psi, Series 7325.

Design Factor:	4:1
Minimum Operating Temperature:	-40 °C, -40 °F
Hose Inner Tube Material:	Ethylene Propylene Diene Monomer (EPDM), Black
Cover Material:	Ethylene Propylene Diene Monomer (EPDM)
Specifications Met:	n/a
Weight:	1.07 to 2.39 lb/ft, 1.59 to 3.56 kg/m
Maximum Operating Pressure:	2.1 MPa, 300 psi, 20.7 bar
Vacuum Pressure Rating:	29 inch-Hg, 737 mm-Hg, Full
Minimum Bend Radius:	152.4 to 304.8 mm, 6 to 12 inch
Application:	Water
Nominal Hose Inside Diameter:	40 to 80 mm
Inside Diameter:	1-1/2 to 3 inch, 38.1 to 76.2 mm
Hose Reinforcement Material:	4 Plies of Textile with Wire Helix
Outside Diameter:	2.094 to 3.700 inch, 53.2 to 94.0 mm
Size:	-24 to -48
Maximum Operating Temperature:	212 °F, 100 °C
Length per Package:	100 ft
Base number:	7325
Cover Structure:	Wrapped
Cover Color:	Black

Part Number	7325-1500, 7325-2000, 7325-2500, 7325-3000
