836
N/A
Description

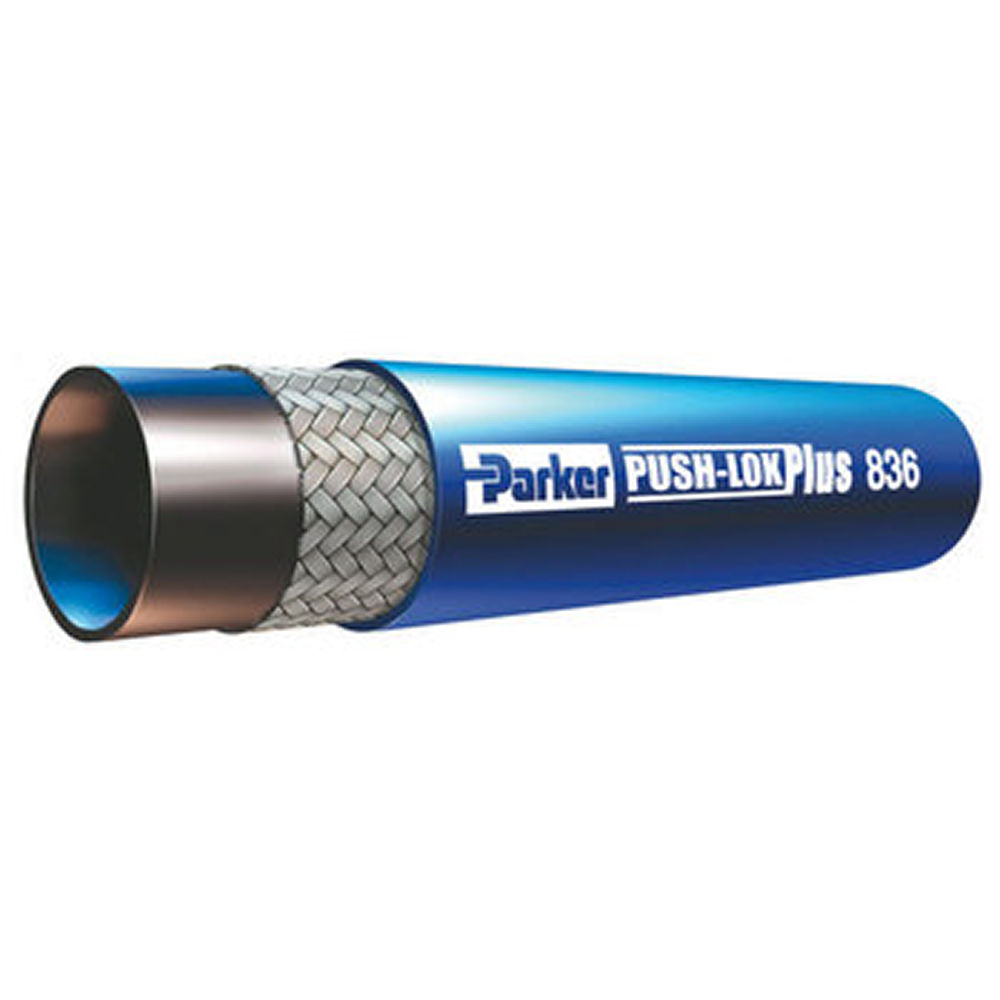

Heat-resistant Push-Lok Plus 836 hoses accommodate higher working pressures and higher temperatures than other Push-Lok Plus hoses while offering the same compatibility features.
Technical Specifications
| Cover Color: | Black, Blue |
| Maximum Operating Pressure: | up to 28 bar, up to 2.8 MPa, up to 400 psi |
| Media: | Air (Compressed Air), Coolants, Fuels, Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series, 82 Series |
| Inside Diameter: | 1/4 to 3/4 inch, 6.3 to 19 mm |
| Outside Diameter: | 0.50 to 1.03 inch, 12.7 to 26.2 mm |
| Maximum Operating Temperature: | View Part Details. (dependent on media), 302 °F (Oil), 100 °C (Air), 85 °C (Water), 150 °C (Oil), 212 °F (Air), 185 °F (Water) |
| Minimum Operating Temperature: | View Part Details. (dependent on media), -48 °C (Oil), -55 °F (Oil) |
| Application: | Automotive, Construction Equipment, Hydraulics, Industrial |
| Design Factor: | n/a |
| Hose Reinforcement Material: | 1 Braid of Fiber |
| Size: | -4 to -12 |
| Vacuum Pressure Rating: | 18 to 28 inch-Hg, 457 to 711 mm-Hg |
| Minimum Bend Radius: | 2-1/2 to 6 inch, 65 to 150 mm |
| Hose Inner Tube Material: | PKR® Rubber |
| Cover Material: | PKR® Rubber MSHA approved |
| Weight: | 0.09 to 0.24 lb/ft, 0.13 to 0.36 kg/m |
Additional information
| Part Number | 836-4, 836-6, 836-8, 836-10, 836-12 |
|---|
