EN857PM
EN 857, Type 1SC
View PDF View Fittings
Description

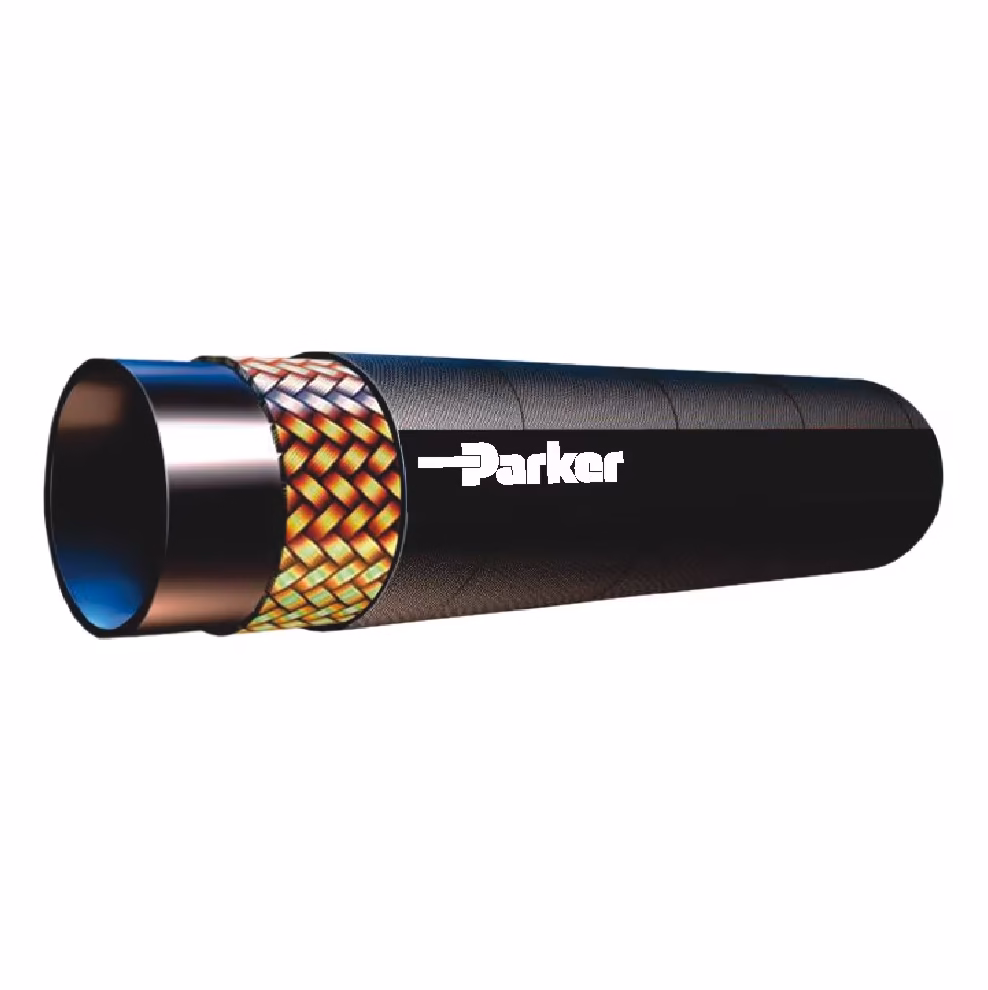

SLIMLINE hose designed to meet the EN 857 1SC specification. The tube & cover meet all the parameters of the specification to give a better service.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | EN 857, Type 1SC |
| Weight: | 0.19 to 0.8 kg/m, 0.13 to 0.54 lb/ft, 0.19 to 0.80 kg/m |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Maximum Operating Pressure: | 225 to 88 bar, 8.8 to 22.5 MPa, 3265 to 1275 psi |
| Application: | Hydraulics |
| Minimum Bend Radius: | 2.9 to 9 inch, 75 to 230 mm, 75 to 230 inch |
| Outside Diameter: | 0.51 to 1.33 inch, 13 to 34 mm, 13.0 to 34.0 mm |
| Size: | -4 to -16 |
Additional information
| Part Number | EN857PM-4PM, EN857PM-5PM, EN857PM-6PM, EN857PM-8PM, EN857PM-10PM, EN857PM-12PM, EN857PM-16PM |
|---|
