7268E
Certification: N/A
Description

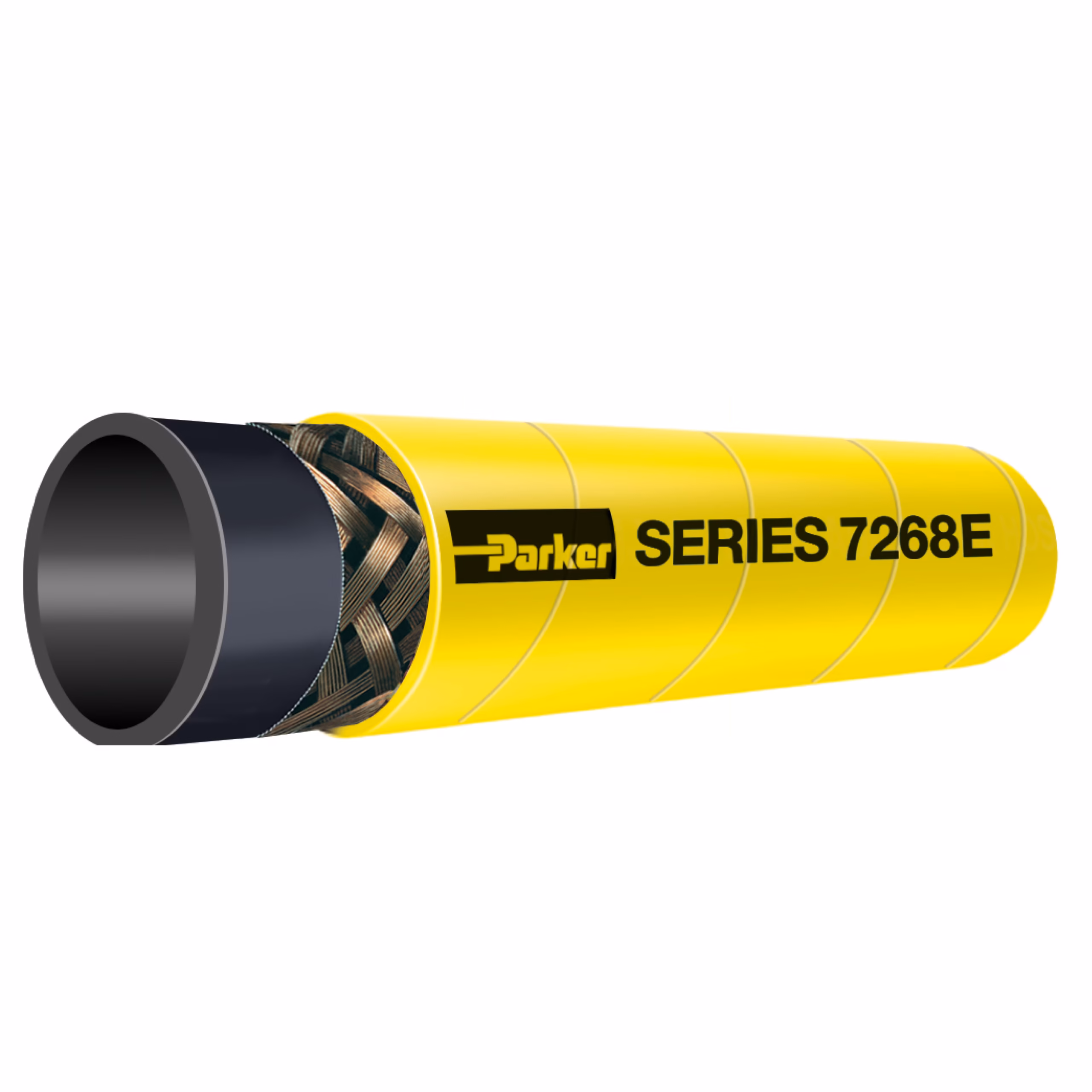

Stinger II High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in applications to 212°F and 1000 psi, Series 7268E
Technical Specifications
| Cover Material: | Nitrile/PVC |
| Compatible Fitting: | HY Series, 43 Series |
| Weight: | 0.34 to 1.1 lb/ft, 0.05 to 0.15 kg/m, 0.15 to 0.52 kg/ft |
| Maximum Operating Pressure: | 6.9 MPa, 1000 psi, 68.9 bar |
| Minimum Bend Radius: | 152.4 to 457.2 mm, 6 to 18 inch |
| Nominal Hose Inside Diameter: | 20 to 50 mm |
| Application: | Water |
| Inside Diameter: | 3/4 to 2 inch, 19.1 to 50.8 mm |
| Hose Reinforcement Material: | 1 Braid of Wire |
| Outside Diameter: | 1.043 to 2.437 inch, 26.5 to 2.437 mm |
| Size: | -12 to -32 |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Cover Structure: | Wrapped |
| Cover Color: | Yellow |
| Hose Inner Tube Material: | Black, Nitrile |
Additional information
| Part Number | 7268E-751, 7268E-751100, 7268E-1001100, 7268E-1251050, 7268E-1501100, 7268E-2001, 7268E-2001100, 7268E-1251100 |
|---|
